InDrawer Attachment (low profile, for use inside of a drawer, 1.5"dia)

Dust Collectors Attachments (Quatro)

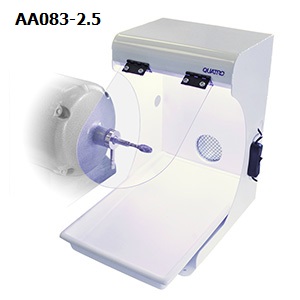

LED SplashGuard Air Attachment For Lathe (AA083-2.5S)

• Dimensions (HxWxL): 12x8x14.5" (31x20x37cm)
• Electrical: 100-120 V, 60 Hz, 0.3 A
• LED illuminated, ideal for use with lathes
• Includes removable plastic Splash Pan
• Powder coated heavy duty steel
• To attach a Slide-Valve, purchase PN: A104C
• Wire mesh keeps parts from being drawn in
• Connects to 2.5" dia. Hose

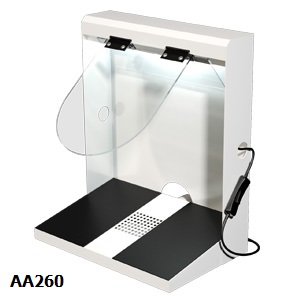

LED AirZone Air Attachment For Hand-piece. Downdraft airflow helps keep contaminants away from breathing zone (AA260)

• Dimensions (HxWxL): 12x10x6.5" (31x25x17cm)
• Electrical: 100-120 V, 60 Hz, 0.3 A
• Bright LED illuminated, with ON/OFF switch
• Gasket cushions for ergonomic hand support
• Powder coated heavy duty steel
• Connect to your dust collector, 1.5" dia hose

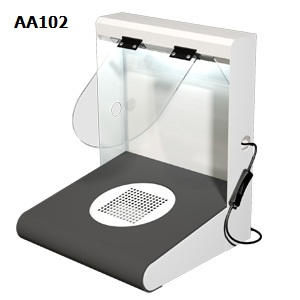

LED AirPort Workbench Air Attachment. Downdraft airflow helps keep contaminants away from breathing zone (AA102)

• Dimensions (HxWxL): 12x10x9" (31x25x23cm)
• Electrical: 100-120 V, 60 Hz, 0.3 A
• LED illuminated
• Gasket cushions for ergonomic hand support
• Powder coated heavy duty steel
• To attach a Slide-Valve, purchase PN: A104C
• Connects to 2.5" dia. hose
• (PN: AA102-1.5 connects to 1.5" dia. hose)

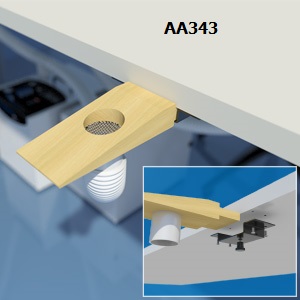

Suction Wedge Workbench Attachment at the Front of the Bench. Downdraft airflow helps keep contaminants away from breathing zone (AA343)

• Dimensions (WxL): 2.63x5.38" (7x14cm)
• Wood wedge installs in front of bench
• Wire mesh prevents items from being drawn in
• Connects to 1.5" dia hose below
• Adjustable support included, makes it easy to remove when not needed

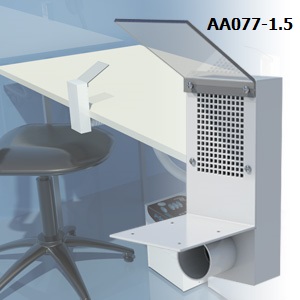

Front Suction Adapter Workbench Attachment at the Front of the Bench (AA077-1.5)

• Dimensions (HxWxL): 9.5x6.5x7.5" (24x17x19cm)
• Secure to underside of workbench, grille faces away from chest
• Shield keeps fine particles away from breathing zone
• Powder coated heavy duty steel
• Connect to your dust collector, 1.5" dia hose
• Use PN: AA077-1.5-6x9 for 6"x9"h shield

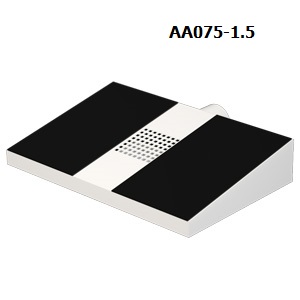

InDrawer Adapter Low Profile Attachment Fits In Your Drawer (AA075-1.5)

• Dimensions (HxWxL): 2x10x6.5" (5x25x17cm)
• Low profile, 2" high, shield also available
• AA075-1.5S w/shield
• Powder coated heavy duty steel
• Connect to your dust collector, 1.5" dia hose

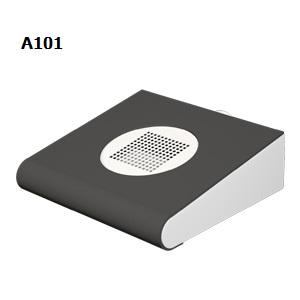

AirPort Low Profile Attachment. Downdraft airflow helps keep contaminants away from breathing zone (A101)

• Dimensions (HxWxL): 3.5x10x11" (90x25x28cm)
• Gasket cushions for ergonomic hand support
• Powder coated heavy duty steel
• To attach a Slide-Valve, purchase PN: A104C
• Connects to 2.5" dia. Hose
• A101-1.5 connects to 1.5" dia. Hose

Fishmouth Conventional Workbench Air Attachment (H151)

• Dimensions (HxWxL): 5x8.5x9" (13x22x23cm)
• Powder coated heavy duty steel
• To attach a Slide-Valve, purchase PN: A104C
• Wire mesh keeps parts from being drawn in
• Connects to 2.5" dia. hose *
• To connect to a 1.5” diameter hose, purchase #AR017 adapter

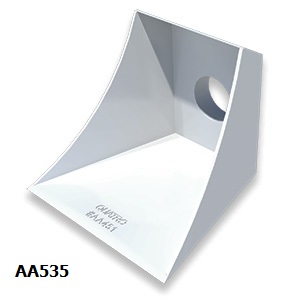

Fishmouth Mini Compact Workbench Air Attachment (AA535)

• Dimensions (HxWxL): 4x6x5.5" (10x15x14cm)
• Powder coated heavy duty steel
• Attaches to a 1.5” (38mm) hose diameter
• Compact is ideal for dentist
• Smaller form factor, perfect for portability

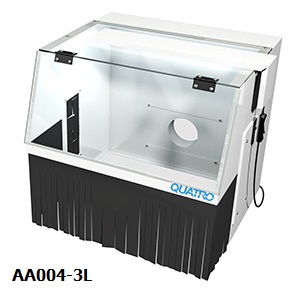

LED ClearView LED Illuminated Workbench Containment Box. Connects to 3" hose (AA004-3L)

• Dimensions (HxWxL): 14.5x15x14.5" (37x38x37cm)
• Electrical: 100-120 V, 60 Hz, 0.3 A
• Powder coated heavy duty steel
• Eliminates debris from breathing zone, contains all debris within enclosure
• Can be connected to dust collector or purifier
• Side opening suited for working with a lathe
• Ideal applications: monomer odor containment, lathes, or any other application where debris containment is essential
• PN AA004-3L, includes 3" inlet (1.5", 2", 2.5" 4" inlets also available)
• To add Slide-Valve to 3"dia. inlet, purchase PN: AA197

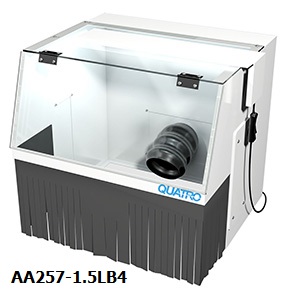

LED ClearView LED Illuminated Workbench Containment Box. Connects to 1.5" dia hose (AA257-1.5LB4)

• Dimensions (HxWxL): 14.5x15x14.5" (37x38x37cm)
• Electrical: 100-120 V, 60 Hz, 0.3 A
• Powder coated heavy duty steel
• Eliminates debris from breathing zone, contains all debris within enclosure
• Can be connected to dust collector or purifier
• Side opening suited for working with a lathe
• Ideal applications: where harmful debris containment is essential
• 2", 2.5", 3", 4" inlets also available
• To add Slide-Valve to 3"dia. inlet, purchase PN: H397

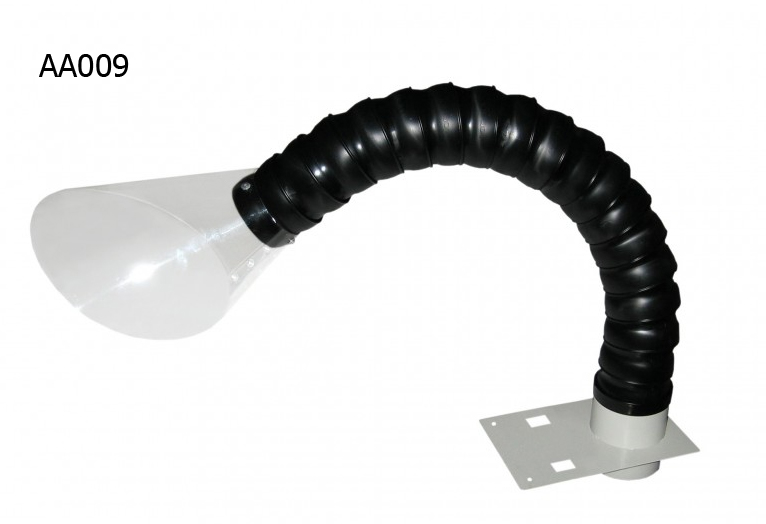

Deluxe Mobile Arm. Move it Out Of The Way When not Using (AA009)

• Mounts on your workbench
• Extends to 24" long, holds its own weight
• Slide-Valve NOT included
• To attach a Slide-Valve, purchase PN: H397
• Connects to 2.5" dia. Hose
• Use PN: AA352 if attaching directly onto ASV
• Use PN: AA326 for 1.5”dia hose connection

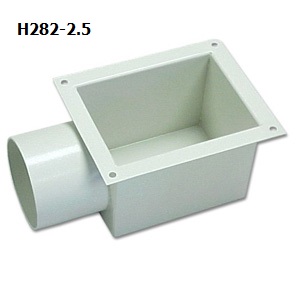

Workbench Adapter Workbench Air Attachment (H282-2.5)

• Dimensions (HxWxL): 3x4x6" (76x10x15cm)
• Installs to underside of workbench
• Ideal to install beneath drawer
• Powder coated heavy duty steel
• To attach a Slide-Valve, purchase PN: A104C
• Connects to 2.5" dia. Hose
• H282-1.5 connects to 1.5" dia. Hose

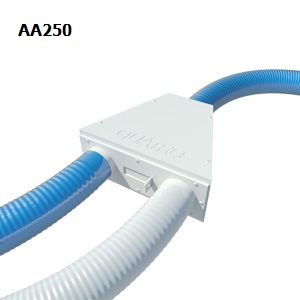

Cut-Off (1-2 Station) 2-Way Air Diverter (AA250)

• Dimensions (HxWxL): 3x6.5x7.5" (8x17x19cm)
• Get full airflow at one station by diverting the air from the other
• Also can switch to 2 stations running simultaneously
• Powder coated heavy duty steel
• Connect to your dust collector, 1.5" dia hose

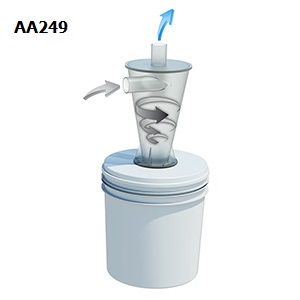

Cyclone Collector Cyclonic Separation Strips Out Larger Particles. Extend the life of Your Filter Bags, reduce dust collector maintenance (AA249)

• Dimensions (HxWxL): 27x12x12" (69x30x30cm)
• Use with any dust collection (except Velocity) for high debris applications
• Cyclonic separation of particles
• Connects between attachment and dust collector
• Ideal for sandblasters and dry model trimmers
• Holds up to 0.8cf, 6 US gallons (23 litres)
• Connect to your dust collector, 1.5"dia hose
• For 2" dia Hose, use PN AA249-2

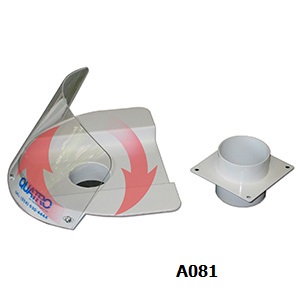

360 Swivel Top piece turns 360 for maximum convenience (A081)

• Dimensions (HxWxL): 4x8x7" (10x20x18cm)
• Installed anywhere on your workbench
• Drill out a hole and connect hose from beneath
• Easily removable
• Ships in 2 pieces
• Wire mesh keeps parts from being drawn in
• Connects to 2.5" dia. Hose

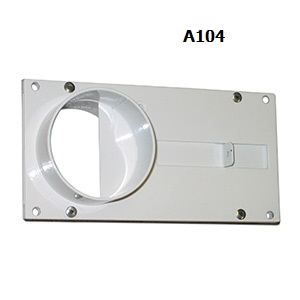

Slide Valve (A104)

• Dimensions (HxWxL): 3x6x2.3" (8x15x58cm)
• Connect between workstation and dust collector
• Shut-off work-station when not in use, increase suction power to other work-stations or attachments
• Designed for 2.5"dia. hose, 3"h x 5"w
• Contains 4 holes to secure onto workbench
