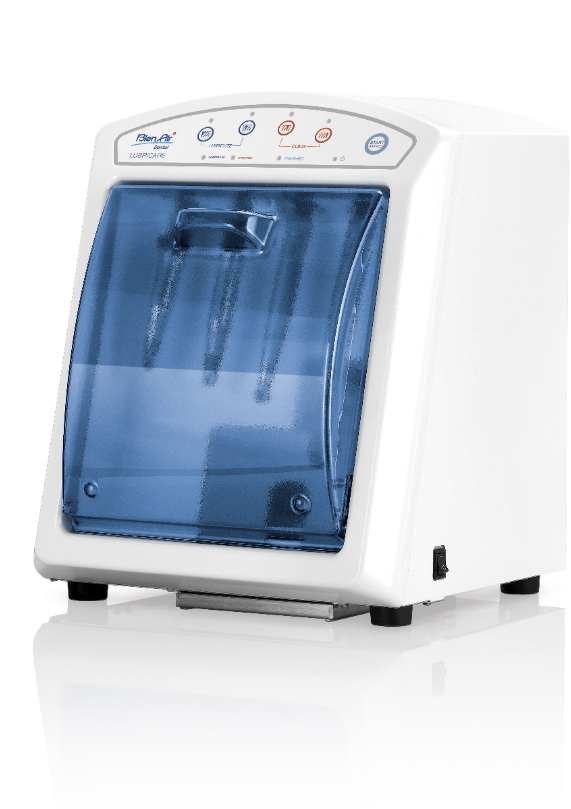

Lubricare Maintenance System

Lubricare Maintenance System (Bien Air)

SIMPLIFIED MAINTENANCE

Quick, simple and economic - this perfectly sums up the Lubricare maintenance device, when used with Bien-Air's Spraynet and Lubrifluid products, with each spray specifically designed for a phase in the maintenance cycle: Spraynet, for dissolving impurities and cleaning the instrument both inside and out, and Lubrifluid, for effective lubrication of instruments. Lubricare and Bien-Air maintenance sprays support the daily use of your instruments, guaranteeing impeccable maintenance, optimal operation and an extended service life.

TECHNICAL DATA

  • Capacity: Up to 4 instruments per cleaning cycle
  • Length of the cleaning cycle: 25 seconds per cleaning cycle, per instrument. Choice of 2 cleaning/lubrication modes: Normal mode and intensive mode
  • Type of Instrument: Turbines, contra-angles and handpieces
  • Maintenance: Cleaning and lubrication

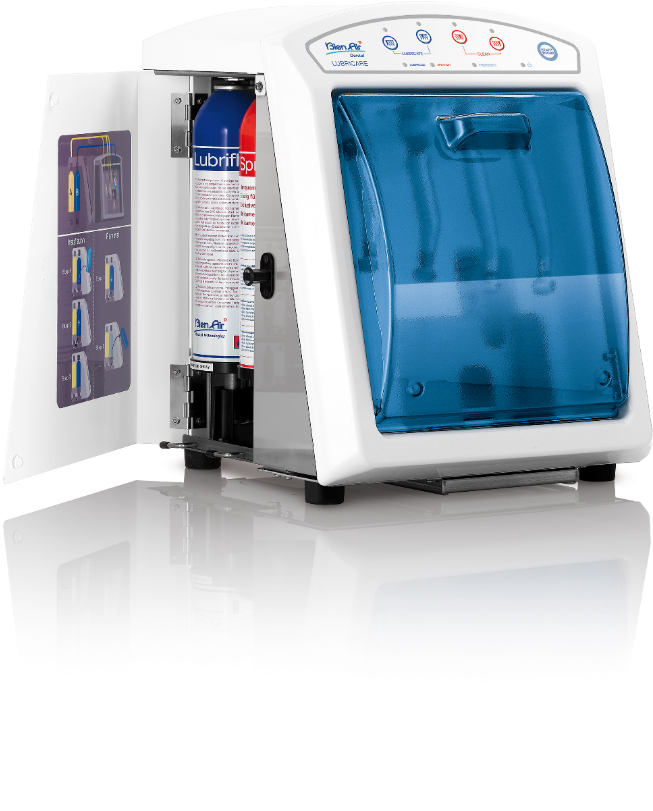

  • Consumption: 5 times more economical than manual maintenance, Lubricare allows 400 maintenance cycles with 1 bottle of Spraynet and 1 bottle of Lubrifluid
  • Extraction System: An extraction system removes the oil vapours. A collector absorbs the excess lubricant, to ensure a cleaner working area and improved hygiene.
  • Lubricant Detector: A lubricant detector monitors the status of the system and detects low lubricant levels
  • Connection: Compatible with Type E coupling as per ISO 3964 and 4- or 5-way turbine coupling
  • Voltage: AC 100-240 V 50/60 Hz
  • Air Pressure: 0.3~0.5 MPa
  • Air Flow Rate: 40~60 Nl/min
  • Dimensions (including the collector): Width 300 x height 370 x depth 300 mm

MPN #1600915-001
Weight:25.00 lbs.
Price:$2940.00
