MD 30 without contra angle 230V; 115V; 100V

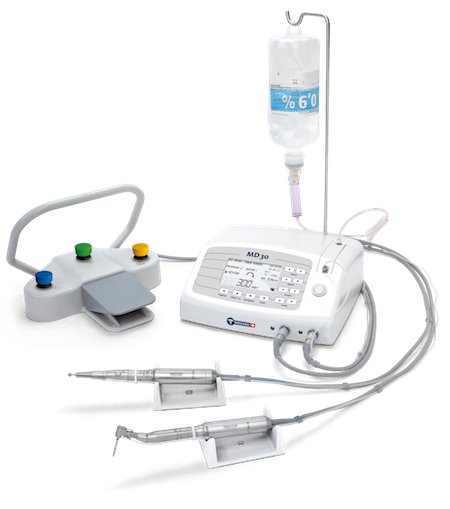

Implantology Motor System MD 30 (Nouvag)

MD 30, powerful and sturdy but intelligent and gentle.

The new MD 30 implantology motor system is the convincing result of 40 years of research and development in the field of implantology. An outstanding solution, absolutely in line with our philosophy of providing implantologists across the world with complete systems that leave nothing to be desired.

This unique motor system, consisting of the housing, electronic motor, footswitch and irrigation pump, offers two motor connections, making work considerably simpler and more efficient.

10 stored programs for each of the two motors ensure smooth running during the procedure. The optimized control of the motors allows you to accomplish your tasks individually with the highest possible precision, also with contra angles equipped with LED, thus guaranteeing safety and trust with every treatment.

Edges and grooves are avoided for easy cleaning of the device. The pump chamber is designed such that any liquid entering passes straight out of the housing. This is an important contribution to safety and may not be underestimated, before, during and after each use.

Advantages

• Make advanced settings in the configuration menu for the customization of your device, according to your needs.
• Intelligent Safety system with acoustic and optical signal and additional blocking of motor drive (e.g. open pump compartment, not connected motor or pedal).
• 70 Ncm of maximum torque at the 20:1 Contra Angle with real time graphic torque control on display.
• Robust, high quality architecture.
• Integrated pump system for cooling of instrument to prevent of tissue damage.
• Advanced motor system with sophisticated motor control for smooth and precise power delivery in any range of speed.
• Multifunctional pedal with motor selection, pump performance adjustment, programme selection and motor speed control.
• Calibration of handpieces and contra angles.
• Real-time speed and torque report.
• 10 Pre-set programs for each motor configurable

Technical Data

• Voltage: 110/115/230V at 50-60 Hz
• Max. output power/motor torque: 120 W/6 Ncm
• Max. torque at the instrument: 70 Ncm, 20:1 contra angle
• Motor speed range, motor: 300-50,000 rpm
• Attachment instruments: ISO 3964 connector (DIN 13940)
• Cable length of motor: 2m
• Coolant flow rate: 1-100 ml/min
• Dimensions: W 260mm x D 250mm x H 110mm
• Foot control: vario foot pedal

Consists of:

• 1 x 3330 Control unit MD30 100V; 115V; 230V
• 1 x 1510 Vario pedal IPX8 for HS / MD30
• 1 x 2097 Electronic motor 21 50´000, 2 mt cord Autocl. ventilated for MD 30 / MD 11

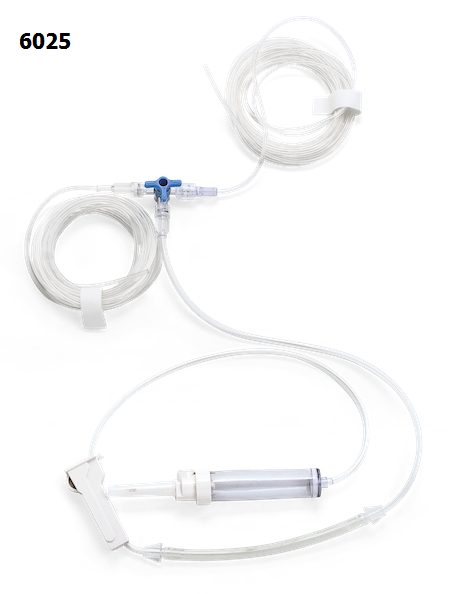

• 1 x 1706 Tubing-set, disposable, sterile 2 meters, double pouch packing
• 1 x 1974 Spray-nozzle to clean Micromotor 21
• 1 x 1958 Spray-nozzle / E-Type handpieces, saws, mucotome, E-coupling

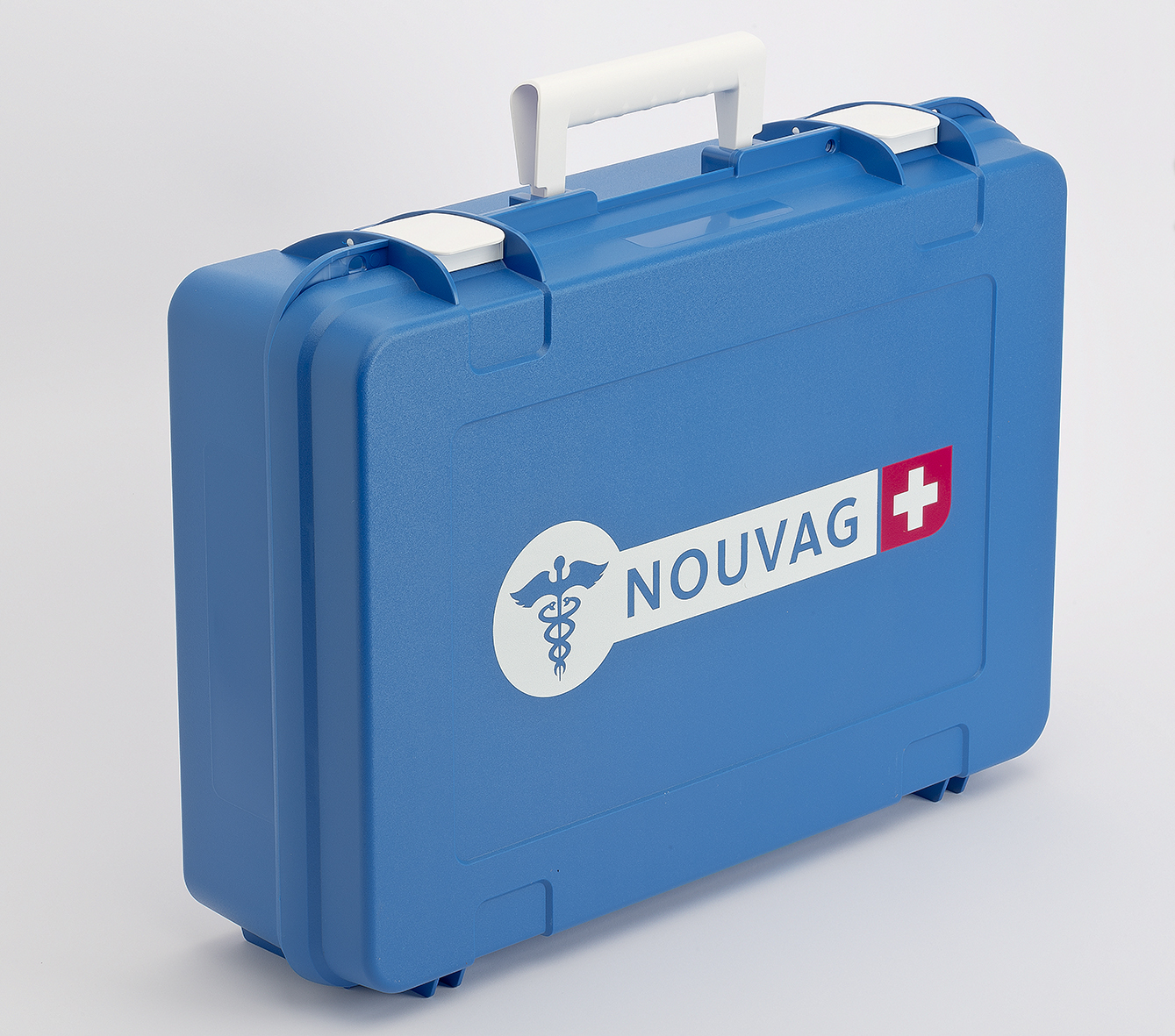

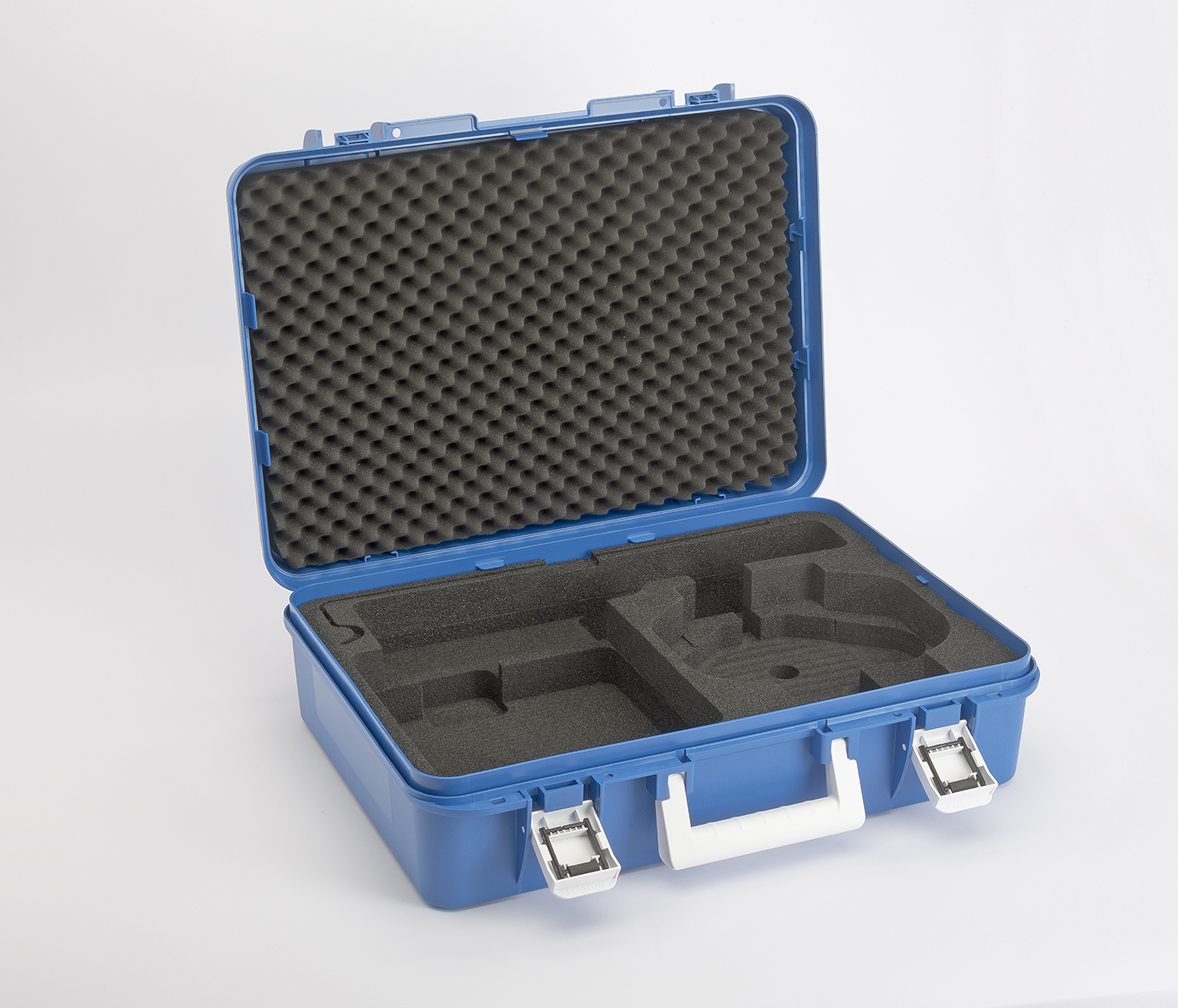

1029 Suitcase: This practical suitcase was lined to house the MD / HighSurg / DP Product-lines. There is enough space for the complete set and even further accessories. The suitcase is lockable and your device is protected by a robust outershell and foamed rubber at the inside. It's both, good for storage and good for transport due to its lightweightness and its practical, ergonomic handle.
